Enerdrive Lackey Power System - Gen 2

Enerdrive Lackey Power System

Since Enerdrive and Dometic broke into the 4WD canopy market in recent years, manufacturers and end users have consistently asked for a compact power solution to simplify the installation of modern setups. Enerdrive has produced several models to cover just about any requirement. Whether you just want a simple system for fridge and lights, or a complex setup with inverter and AC charging, Enerdrive has you covered.

All power systems are pre-wired by Enerdrive for easy installation: Bolt the box into your canopy or station wagon, connect the inputs, outputs and house battery, and hit the road!

All systems are built into a unique compact box arrangement and are designed to mount to the wall or ceiling of a vehicle's canopy. Any brand of 12V battery is suitable, and compatible chemistries include Wet, Sealed, AGM, Gel and Lithium.

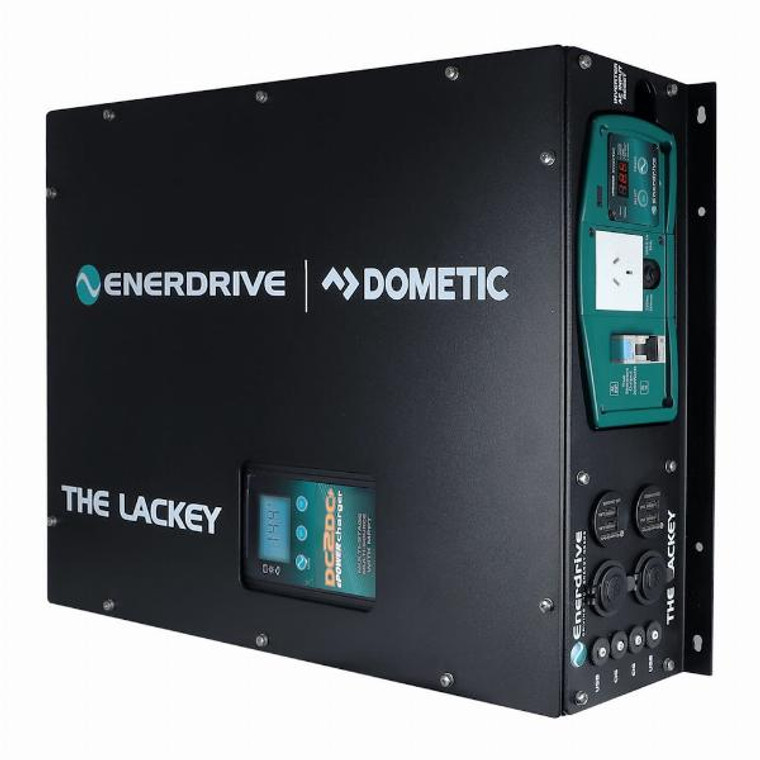

The Lackey:

Need power onsite? Get The Lackey to do it.

Key features include a DC-DC charger with alternator and solar input, and 2000W AC transfer inverter. Charge from your vehicle's engine or solar panels. Designed as a pure “Plug & Play” system for the Tradie wanting power wherever they are.

• Suitable for use with Lead Acid, SLA, AGM, Gel and Lithium (LiFePo4) batteries (not included)
• ePOWER DC2DC40+ Vehicle/Solar Charger
• 2000W True Sine Wave Inverter with RCD
• 4x Front Circuit Breakers (2x USB, 2x Cigarette Light Socket)
• 3x Rear Circuit Breakers (Inverter, Charger and Loads)
• 70mm2 House Battery Cable and Fuse
• 3x 50A Anderson Plugs (Solar Input, Alternator Input and Load Output)
• 175A Anderson Plug (House Battery)
• 2x 12v Cigarette Lighter Socket
• 2x Dual 2.4A USB-A Socket

The Enerdrive DC2DC40+ Battery Charger is a fully automatic multistage, multi input battery charger with the ability to charge from either the vehicle alternator or solar power. Featuring an MPPT solar controller for maximum efficency. Charge rate is user selectable from 5 to 50A. Vehicle input 12 or 24V. Solar input 45V and 800W max.

The 2000W 12V Inverter with AC Transfer & Safety Switch is one in a family of affordable, high quality, professional level inverters by Enerdrive. By using the latest power conversion technology, our inverters deliver clean and energy efficient true sine wave AC power from your DC supply. Also included in the unit is a RCD Safety Switch. This switch monitors the flow of electricity through the inverter and detects any problems that may pose a risk to personal safety and switches the output power off within 0.03 of a second.

• Wiring Diagram

Please Note: As theses systems are built to order by Enerdrive, they may take up to 4 weeks to supply.

Battery Not Included.
